Specifications
Specifications | |

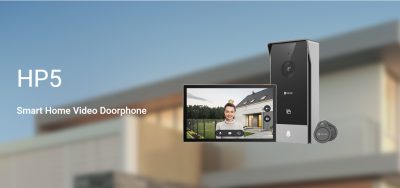

Model | CS-HP5-R100-1W2TFC |
Outdoor Doorbell | |
Image Sensor | 1/2.7″ Progressive Scan CMOS (Supports low light sensitivity) |
Lens | 2.0 mm @ F1.6,viewing angle: 134° (Diagonal) |
Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
Max. Resolution | 1920 × 1080 (1080p) |
DNR | 2D / 3D DNR |
Video Compression | H.265 / H.264 |
Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
Connection and Function | |
Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
Door Open Methods | 1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock |
Outdoor Doorbell Interface | |
Audio Input | Built-in high-sensitivity microphone |
Audio Output | Built-in high-power speaker |
Doorbell Button | 1 doorbell button (Can be set to become illuminated or not). |
Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
Functions | |
Tamper Alarm | Supports |
Video Intercom | Long-distance video two-way talk |
General | |
Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
IP Grade | Waterproof, with shield cover |
Size | 153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch) |
Interior Display | |
Display size | 7” touch screen |
Resolution | 1024 × 600 |
Interface | |
Audio Input | Built-in high-sensitivity microphone |
Audio Output | Built-in high-power speaker |
Button | Screen On / Off Button |
Terminal | Two wiring ports to connect 1st outdoor doorbell. |
Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
Network Parameters | |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Protocol | EZVIZ Cloud Proprietary Protocol |
Protocol | EZVIZ Connect Protocol |
Wi-Fi Parameters | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |

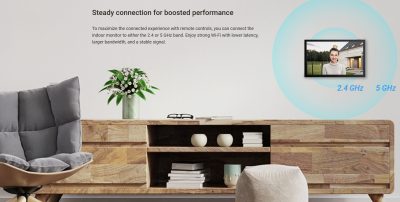

Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
Function | |
Multiple ringtones | Up to 20 ringtones |
Functions | Live view, playback, two-way talk, video call |
General | |
Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
Power Supply | DC 24V 1.5A power supply, adaptor (100-240Vac) |
Power Consumption | 8W, Max. 24W |
Products Weight (HP5) | |
Net Weight | 639g (22.54oz) |
With Package | 1505g (53.09 oz) |
In the box | |
In the box | – Monitor |
– Wall Bracket for Monitor | |
– Power Adapter for Monitor | |
– Intercom Panel | |
– Drill Template for Monitor | |
– Drill Template for Intercom Panel | |
– Name Card (×2) | |
– Screwdriver | |
– Badges (×2) | |
– Screw Kit (×2) | |
– Wires and Wire Connectors | |
– DC 24V Power Supply Jack Connector Cable | |
– Regulatory Information (×2) | |
– Quick Start Guide |
