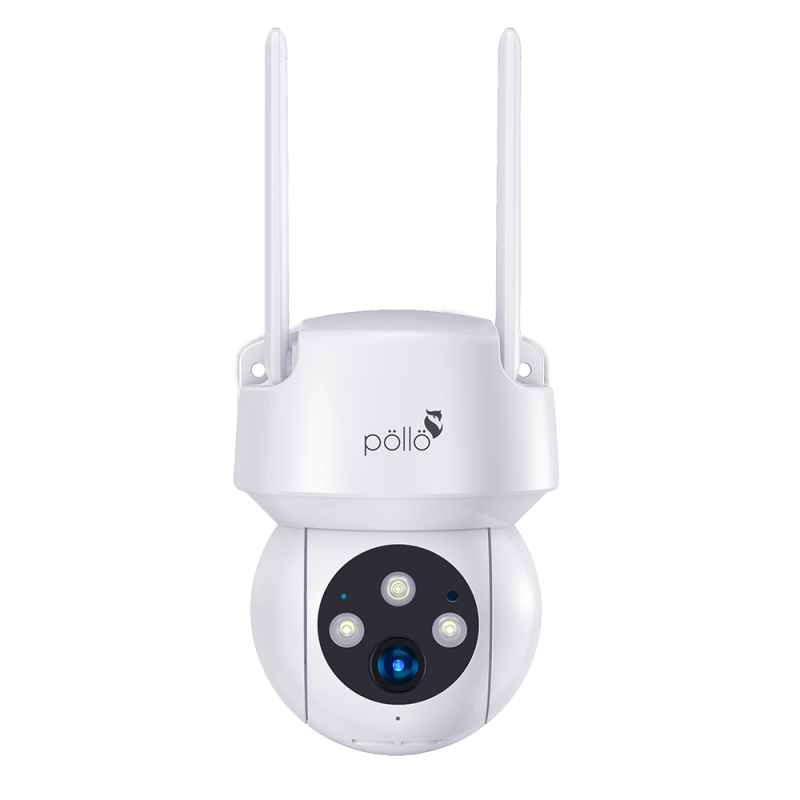

| Product model |
PLC-HS303-T |
| Form Factor |
PT Dome Camera |
| Product Colour |
White |
| Antenna |
external antenna |
| Materials |
ABS + PC + Anti – UV |
| waterproof level |
IP66 |
| Dimension(L*W*H)(mm) |
119*89*86mm |
| Flash |
8MB |
| optics |
4.0mm,F2.6 aperture, waterproof |
| Viewing angle |
D*H*V 101°*85°*45° |
| Image circle |
Ø7 |
| Dimension |
M12*22.9mm; |
| Sensor Type |
MIS2008 |
| Resolution |
2304*1296 Pixel |
| Night Vision |
10M distance |
| IR-LED |
3pcs IR(IR+White)led*0.5W |
| WHITE-LED |
10m (850nm), White light colour temperature:4000K(pure white) |
| IR-CUT |
Normal |
| photosensitive |
Colour cut black ≤0.5Lux; Cut the black colour≥ 8.5Lux |
| Working Indicator |
red green light*1 |
| Standard |
RTL8188FTV |
| Mic |
Full duplex, sensitivity: ≥-32±3dBm, IP66 waterproof |
| Speaker |
Built-in 8 ω /2W, IP66 waterproof |
| TF Card |
Max support 128G |
| Button Switch |
Reset *1 |
| Ethernet |
Aside: JL1101 |
| Antenna |
3DBi * 1 |
| Horizontal angle |
336° |
| Vertical angle |
108° |
| Wifi Maximum rate |
54 Mbps |
| Wifi distance |
open≥120m |
| Wifi standard |
IEEE 802.11 b/g/n, single frequency 2.4G |
| Power Supply |
USB Port 5V |
| Operational power consumption |
Max 4.5W |
| I/O Input port |
TF Card*1, Mic*1 |
| I/O Power port |
USB2.0,2P/1.5mm, 3M long |
| I/O Ethernet port |
Reserved: 6P/1.25 (4P network +2P power supply) No network indicator/power indicator; |
| I/O Output port |
Speaker*1 |
| I/O key type |
Reset*1; |
| I/O Indicator light |
Red and green two-colour indicator light*1; |
| Echo cancellation |
Support |
| Two-Way Talk |
Support |
| Start-up the bell |
Support |
| Rest the bell |
Support |
| Compression method |
G.711A |
| Video Format |
H.264 |
| Video frame rate |
Day:20fps; Night:15fps |
| Resolution & frame rate |
2304*1296 Pixel, Multi-bit stream, adaptive; |
| IR turned ON |
Enable night vision view, IR, ICR auto detection |
| IR turned OFF |
Disable night view, turn off infrared, ICR stays in day view mode; |
| Andorid |
Android 4.3+ |
| IOS |
IOS 9.X-10.X more |
| Mobile APP |
Cloud Edge |
| Cloud platform |
Amazon |
| Language |
Chinese, English, French, German, Italian, Spanish, Japanese |
| Basic function |
Support configuration/real-time preview/screenshot/playback/intercom/video adjustment /recording/PTZ/cloud storage |
| Cloud recording storage |
Support |
| Online visitor |
Max 5 user |
| Type of Alarm |
Support push message, sound and light alarm |
| Human tacking |
Support |
| Detection Sensitivity |
low/medium/high, default medium |
| Audible alarm |
3 options (default white light is always on) |
| Remote control and monitoring |
Support |
| Power failure memory |
Support |
| Onvif |
Optional |
| Pairing |
QR code add, AP hotspot |
| OTA upgrade |
Support |
| Green Light slow flash |
preview image |
| Green Light Always bright |
Unreviewed image |
| Green Light Always bright |
online |
| Green Light slow flash |
running normally |
| Red Light slow flash |
The device enters this state when it is powered on and no network is configured |
| Red Light Quick flash |
Duration: Until the network is configured successfully |
| Red Light Quick flash |
Until the upgrade succeeds or fails – (the green light is always on when the upgrade is successful) |
| Red Light Red light quick flash |
The network status is the same as device |
| Reset the device |
Normal connection indicator status: red light flashes slowly -> red light flashes quickly -> green light is always on; The red-light flashes slowly when the network is not configured. When the user connects to the 2.4G network and scans the code for the device, the red-light flashes quickly; The red-light flashes quickly to indicate that the server is being connected; the indicator is steady green, the network is online successfully; |
| Restart the device |
Red light flashes slowly > red light flashes quickly -> green light is always on |
| Broken network |
Red light flashes quickly |
| Package |
Pearl cotton, giftbox, 3m USB cable, positioning sticker |
| Temperature setting |
working: -20 ~ 60 ℃, Humidity <95% Storage:-25 ~ 65 ℃, Humidity <95% |
