- Convert 433MHz RF Remote to App via WiFi
- Make 433MHz RF devices App remote controllable
- Support to add max. four 433MHz RF Remote/Curtain Switch/Alarm
- Support to control up to sixteen 433MHz RF devices
- Support totally 8 schedule/countdown/loop timers to turn on/off 433MHz RF controlled devices
- Receive alarm push message from 433MHz PIR sensor, door &window alarm sensor
- Control 433MHz RF devices over Wi-Fi or mobile network
- Free iOS and Android mobile app eWeLink
- Works perfectly with Amazon Alexa, Google Assistant
Note 1:
- The receiving supports fixed code 433.92 frequency, like PT2260, PT2262, PT2264, EV1527, etc.
- The product doesn’t support to learn rolling code and dynamic code
- You can’t see device status changes in the App.
Note 2:
What’s new on Android & iOS 2.5.0 and higher versions?
- Scheduled/countdown timers are supported.
- iOS App supports to add this product.
- 433MHz RF curtain switch and RF alarm are supported.
Product Description
Overview
This RF Bridge 433 can convert most of the 433.92MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, You can add up to four RM433 RF or alarms, also add them together (max. 4 devices). One remote controller can learn 4 devices, which means 16 devices supporting 433 MHz frequency can be added on the app through WiFi/2/3/4G network.
It can be used for most of the 433.92MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc. You can set totally 8 schedule/countdown/loop timers to turn on/off the RF controlled products.
Even more exciting is that it will work with the 433.92MHz door magnetic sensor, 433.92MHz human body IR sensor, and more other 433.92MHz sensors to realize security alarm, and allowing you to DIY smart scenes. Note that the alarm push only comes in the owner’s account, those users being shared can’t view the alarm push.

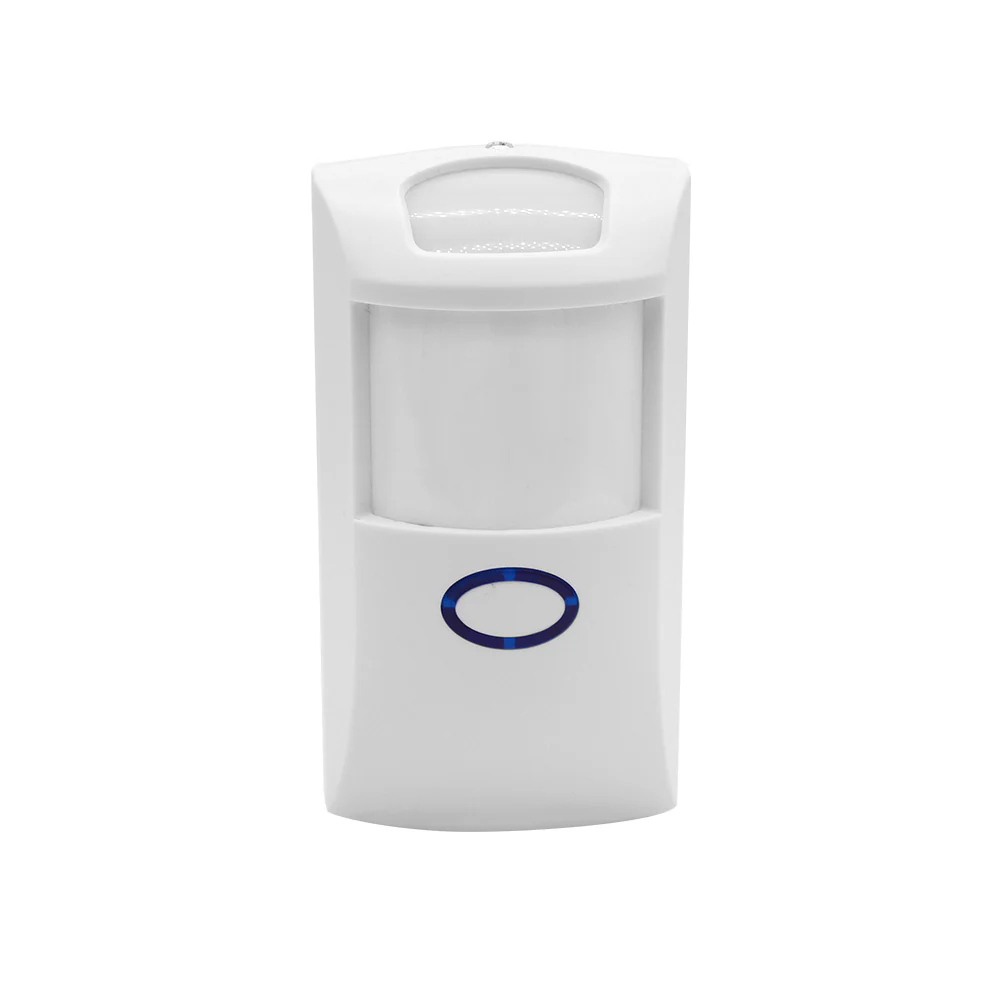

PIR2 is a 433.92MHz RF PIR motion sensor that for human detection. The motion detector can work with the Sonoff RF Bridge 433, providing human detected alarm message push to your phone.
Features for Sonoff PIR2 sensor
- Dual infrared
- Ultra-low power microprocessors
- Double temperature compensation technology
- Robust and durable, suitable for homes, offices, sheds, garages etc.
- Easy installation and set-up, wall-mounted
Specification for Sonoff PIR2 sensor
- 433.92MHz Transmit distance: 150m (open)
- Voltage: 3V (2*AA)
- Standby current: ≤9μA
- Alarm current: ≤10mA
- Wireless frequency: 433.92MHz
- Wireless Transmit Code: 1527Mhz (default)
- Detection distance: 12m@ 25℃
- Detection angle: 110 degrees
- Maximum coverage area: 12m*12m
- Alarm indicator light: on for 3 seconds
- Working environment: indoor
- Tamper switch: normally closed
- Anti-white light intensity: 10000Lux
- Packing size: 165*65*50mm
- Product Size: 120*62*46mm
- Battery type: 2*AA(Note: this model doesn’t come with battery)
- Weight: 120g
