Specification:
- General Information
| Parameter | Details |
|---|---|
| Brand | Tuya |
| Model | JWG3 |
| Device Type | Smart WiFi Circuit Breaker |
| App Support | Tuya Smart / Smart Life |
| Voice Assistant | Google Assistant, Amazon Alexa |
| Warranty | 1 Year Replacement Warranty |
- Electrical Rating / Technical Specifications
| Parameter | Details |
|---|---|
| Rated Current | 40A / 63A |
| Maximum Current | 63A |
| Rated Load | 40A / 8KW |
| Input Voltage | AC 90V–300V |
| Frequency | 50/60Hz |
| Pole | 1P+N |
| Monitoring Parameters | Voltage, Current, Power, Energy Consumption |
| Connectivity | WiFi 2.4GHz |
| Remote Control | Supported |
| Timer & Schedule | Supported |
- Installation / Interface
| Parameter | Details |
|---|---|
| Installation Type | DIN Rail Mount |
| Communication | WiFi 2.4GHz |
| Mobile App | Tuya Smart / Smart Life |
| Voice Control | Google Assistant, Amazon Alexa |

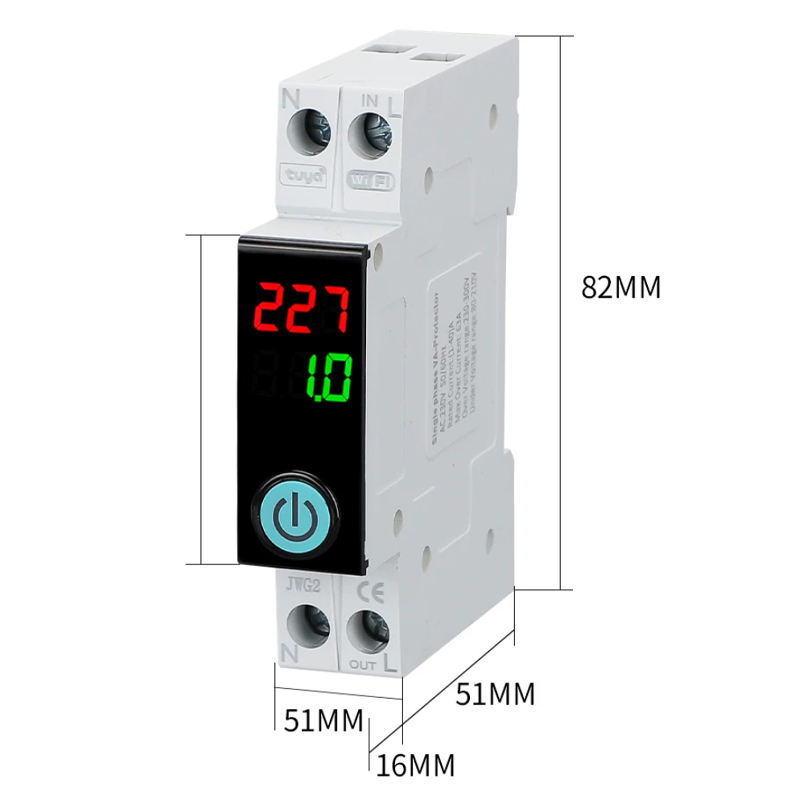

- Physical Information
| Parameter | Details |
|---|---|
| Display | LCD Digital Display |
| Pole Type | 1P+N |
| Mounting | Standard DIN Rail |
- Environmental Information
| Parameter | Details |
|---|---|
| Operating Frequency | 50/60Hz |
| Installation Environment | Indoor |
| Recommended Installation | Professional Electrician |

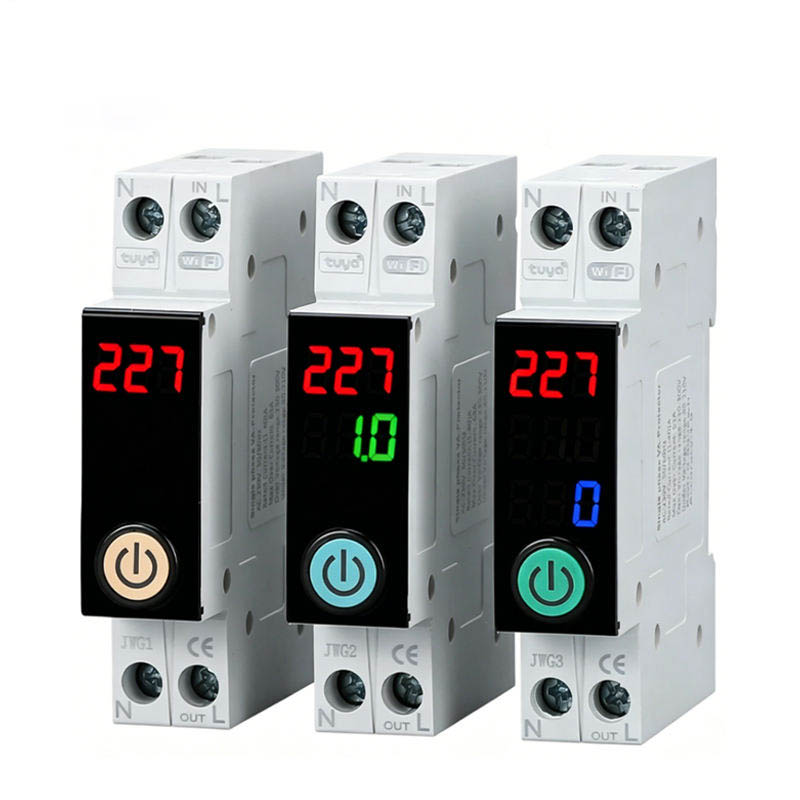

The JWG3 WiFi Smart Circuit Breaker is a smart DIN rail MCB designed for remote power control and energy monitoring. With support for Tuya Smart and Smart Life apps, users can monitor voltage, current, power consumption, and energy usage from anywhere. Equipped with an LCD display, timer function, and multiple protection features, this smart breaker offers convenient control and reliable safety for residential, office, and commercial electrical systems.
The JWG3 WiFi Smart Circuit Breaker with Energy Monitoring is an advanced smart power management device designed for homes, offices, shops, and commercial electrical systems. Unlike traditional circuit breakers, this device combines protection, remote control, and real-time energy monitoring in a single compact unit.
Through the Tuya Smart and Smart Life mobile applications, users can remotely switch electrical loads ON or OFF from anywhere. The built-in monitoring system allows real-time observation of voltage, current, power consumption, and energy usage, helping users optimize electricity consumption and reduce energy costs.
Its integrated LCD display provides instant access to important operating information directly on the device. Users can also configure timer schedules and automation functions for smarter energy management.
The JWG3 smart breaker supports Google Assistant and Amazon Alexa, enabling voice control and integration into modern smart home ecosystems.
Multiple protection mechanisms including over-voltage, under-voltage, and over-current protection help improve the safety and reliability of connected appliances. With easy DIN rail installation and intelligent operation, this device is suitable for residential, commercial, and industrial low-voltage applications.
